AM-1



The Antenna Impedance Meter AM-1 came on the market in 1952 and was produced until 1960. It is a simple instrument that is used with the Grid Dip Meter to determin the antenna impedance and resonant frequency.

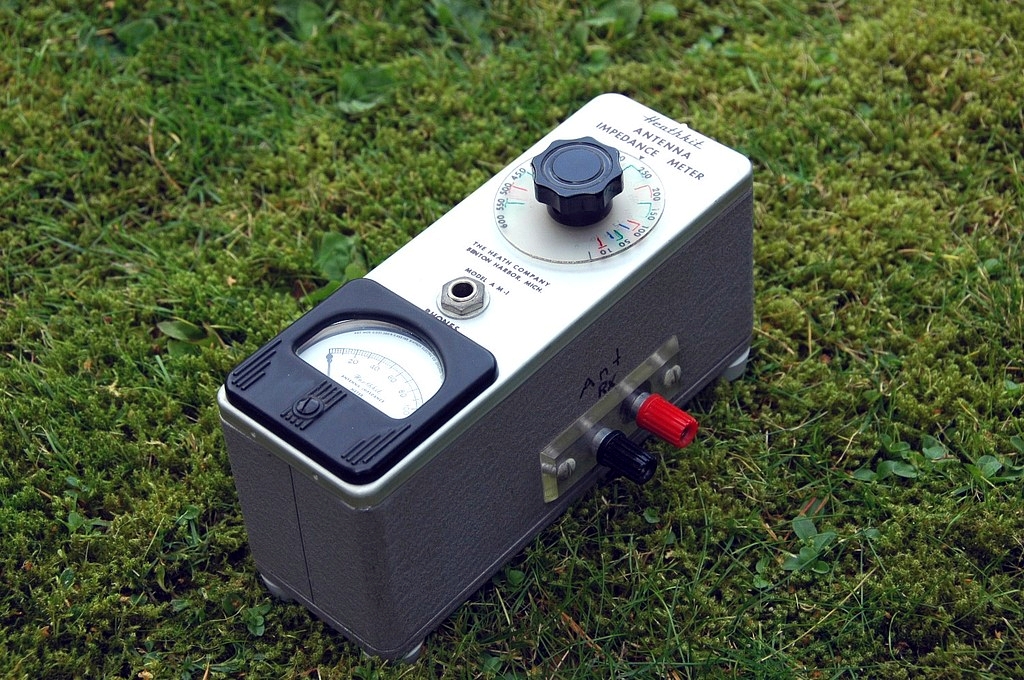

AM-1

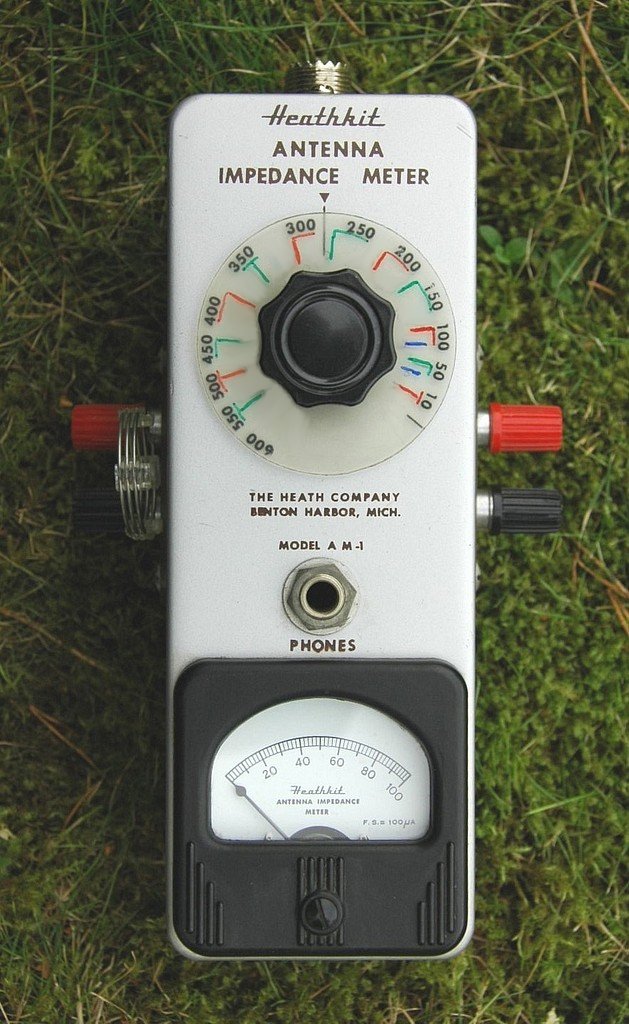

AM-1

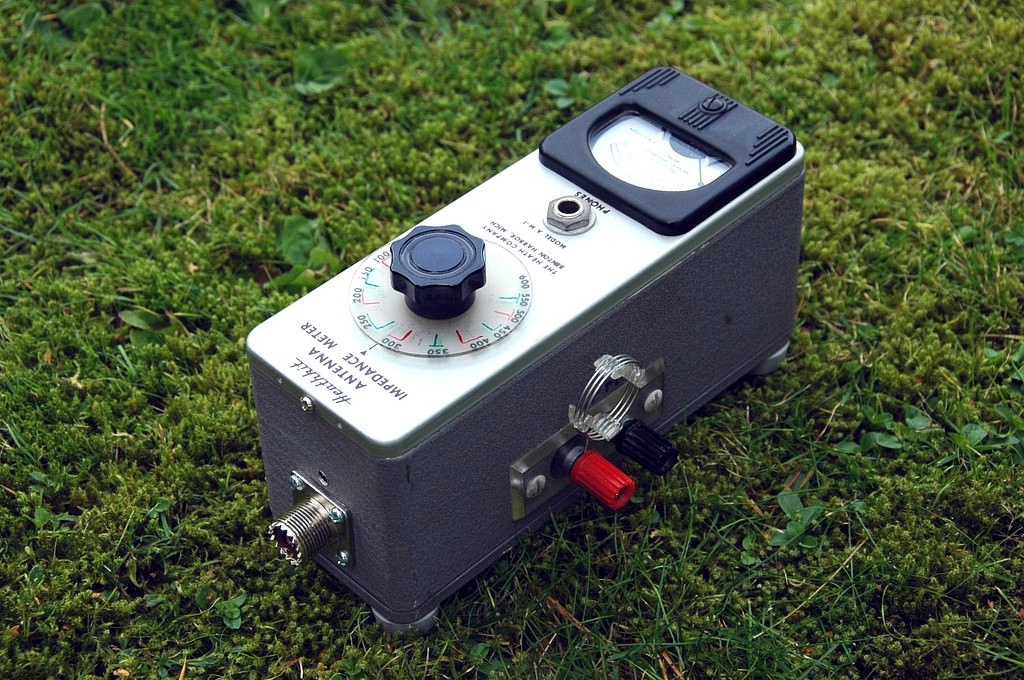

I have added an SO-259 antenna socket for improved usability.

AM-1

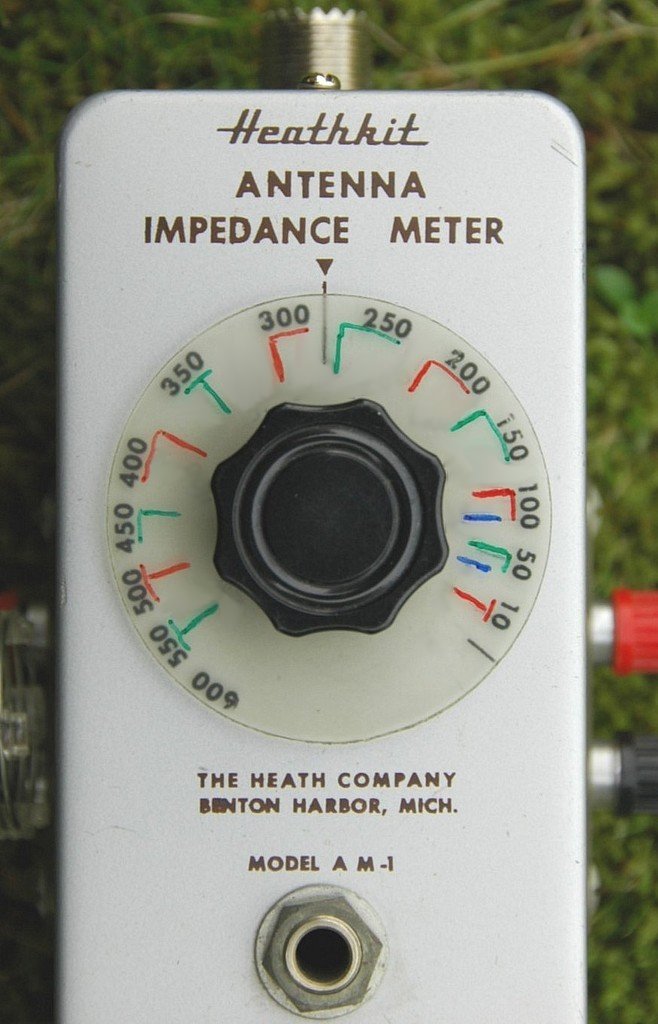

I have calibrated the dial scale and added markings for 75 ohm and 35 ohm.

AM-1

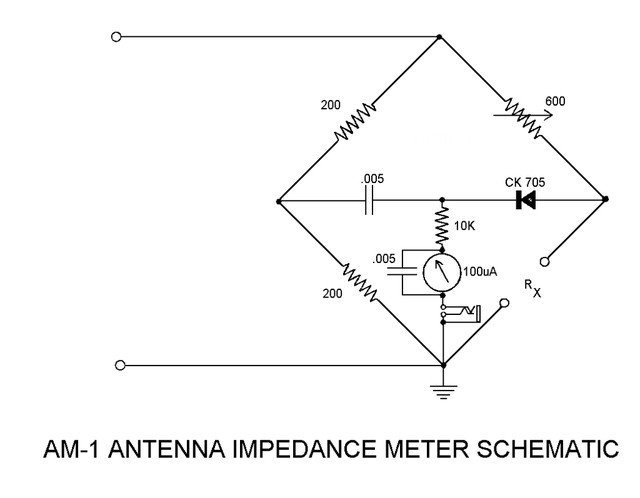

AM-1 schematic
