HW-101

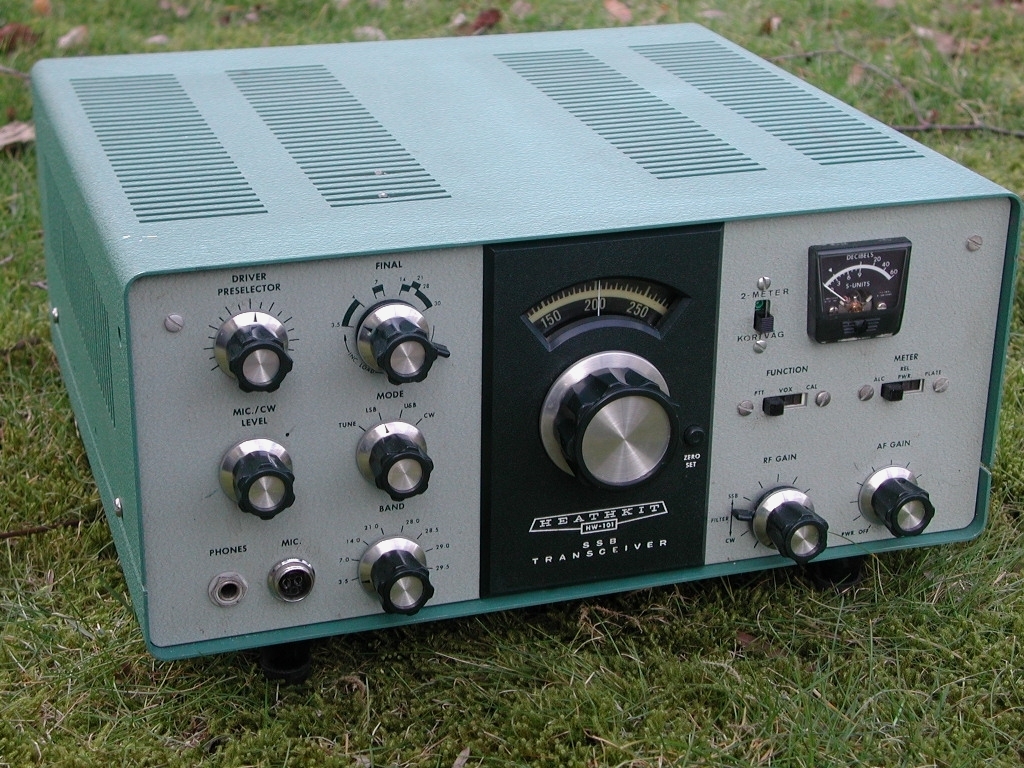

This is my second HW-101 and is slightly modified to work with the 144MHz Transverter.

HW-101

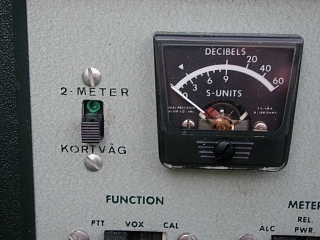

Next to the S-meter is a switch to choose between the 2 meter transverter or normal short wave use.

HW-101 switch

The transverter is not a Heathkit but it could as well have been a Heathkit though it is designed and constructed in the spirit of Heathkit and it is also fit in a HW-101 chassis. The transverter output stage is equipped with a QQE06/40 tube and the driver tube is the QQE03/12 type. It should be capable to deliver approximately 100W but lack of documentation makes alignment and use a bit unsertain. Thanks to SMØAOM Karl-Arne Markstrom, I now have some limited documentation though. The low power transverter circuitry was designed by the Danish radio amateur OZ9SW Jørgen Brandi. The power amplifier is of unknown origin.

Transverter

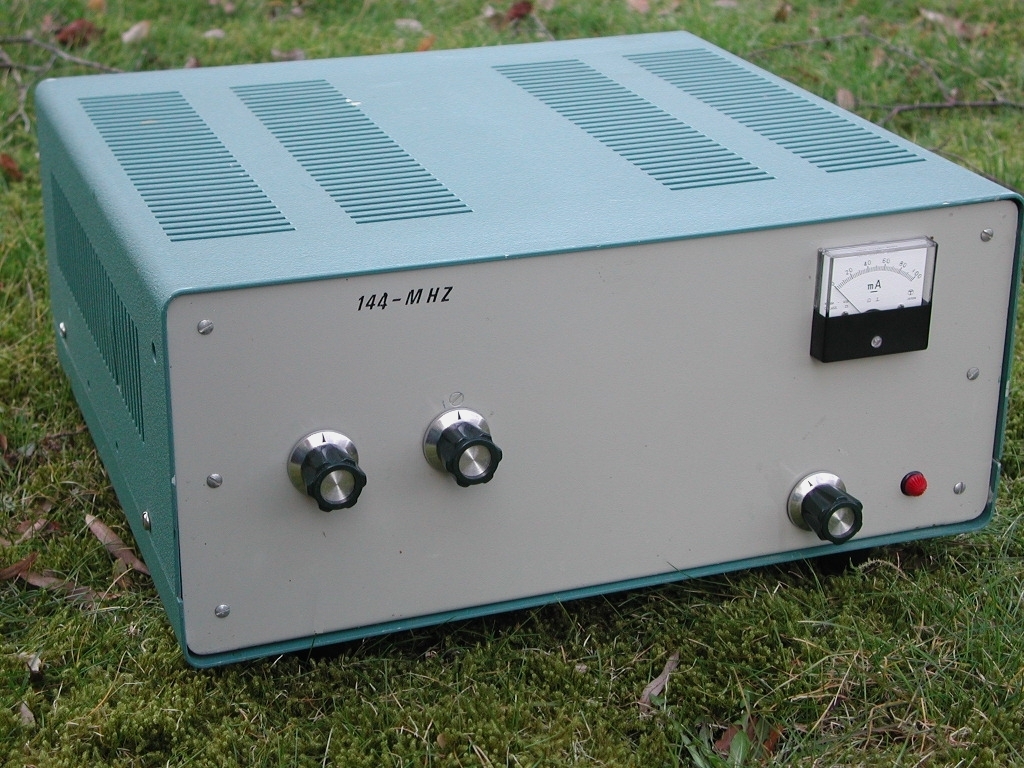

The transverter in a HW-101 chassis

Transverter

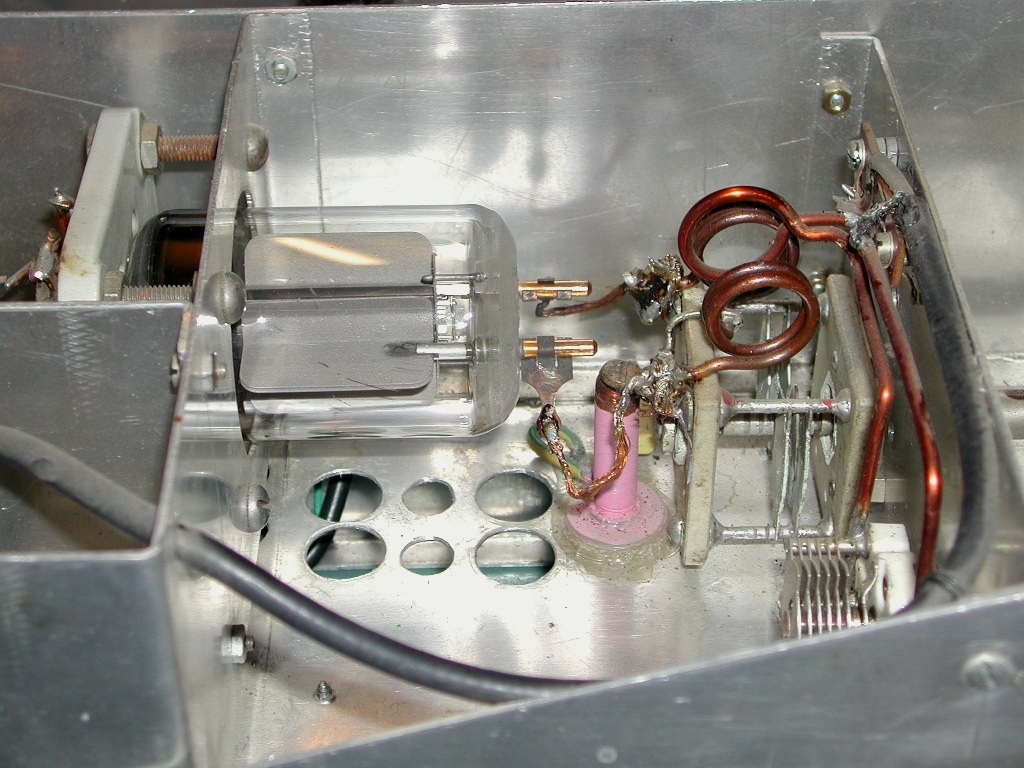

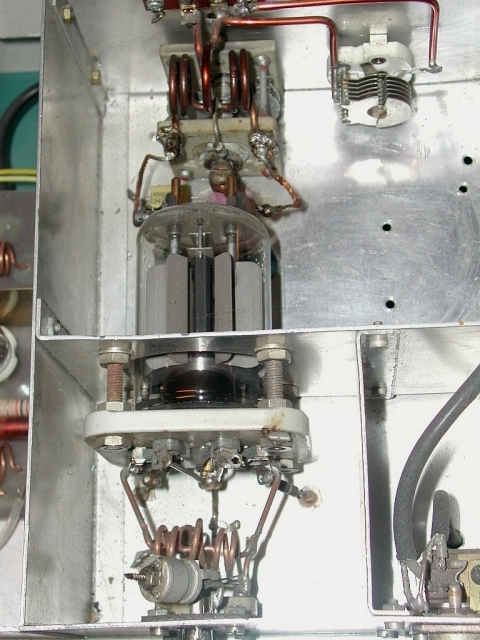

QQE06/40 output tube

Transverter

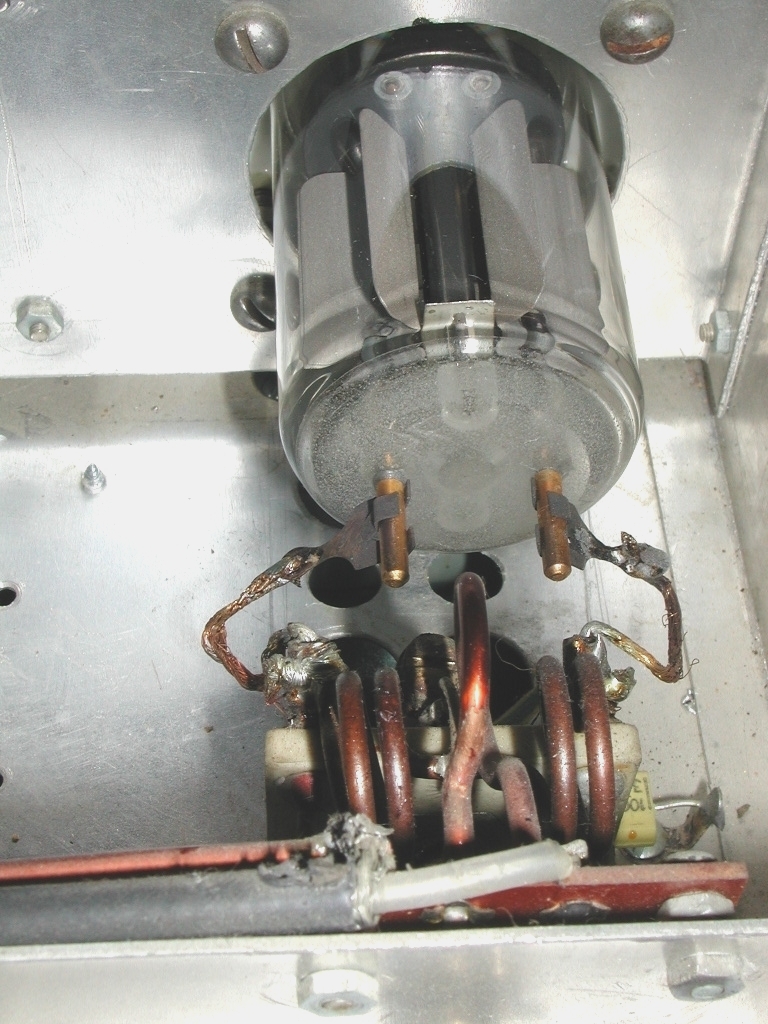

QQE06/40 output tube

Transverter
QQE06/40 output tube

Transverter

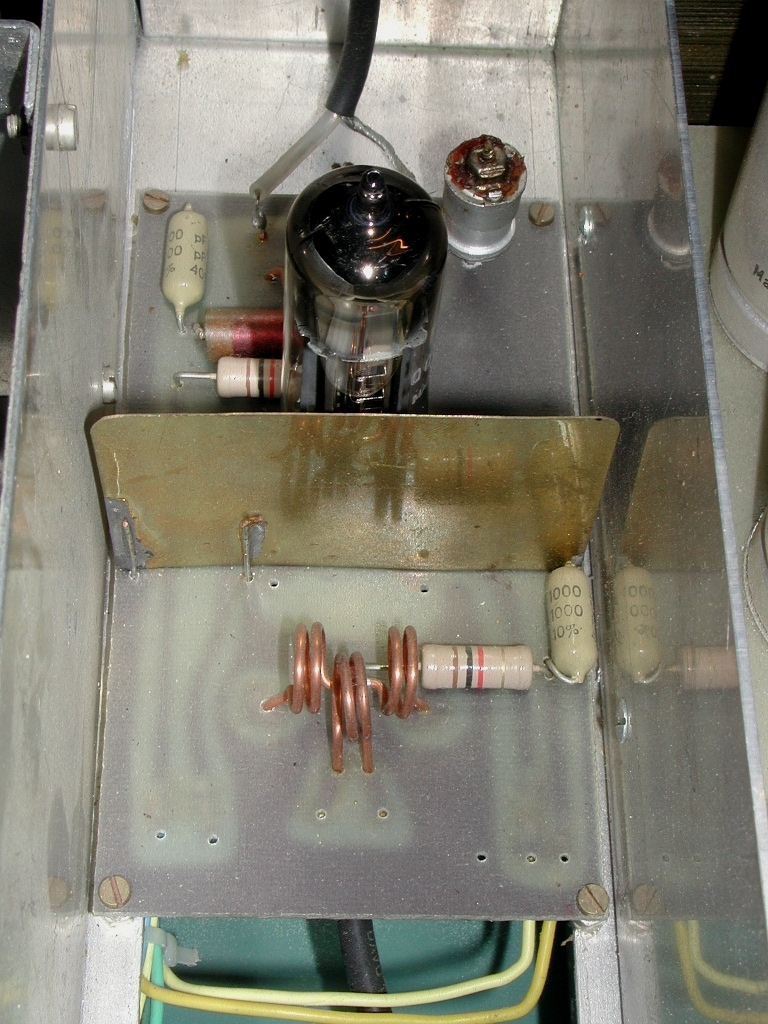

QQE03/12 driver tube

Transverter

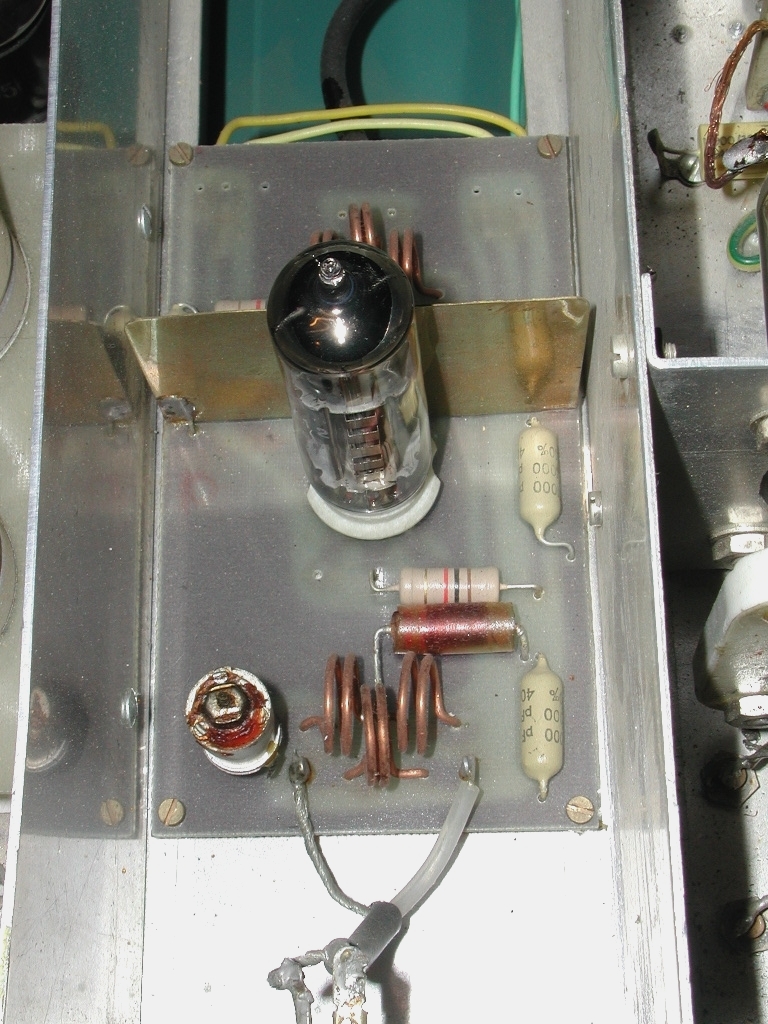

QQE03/12 driver tube

Transverter

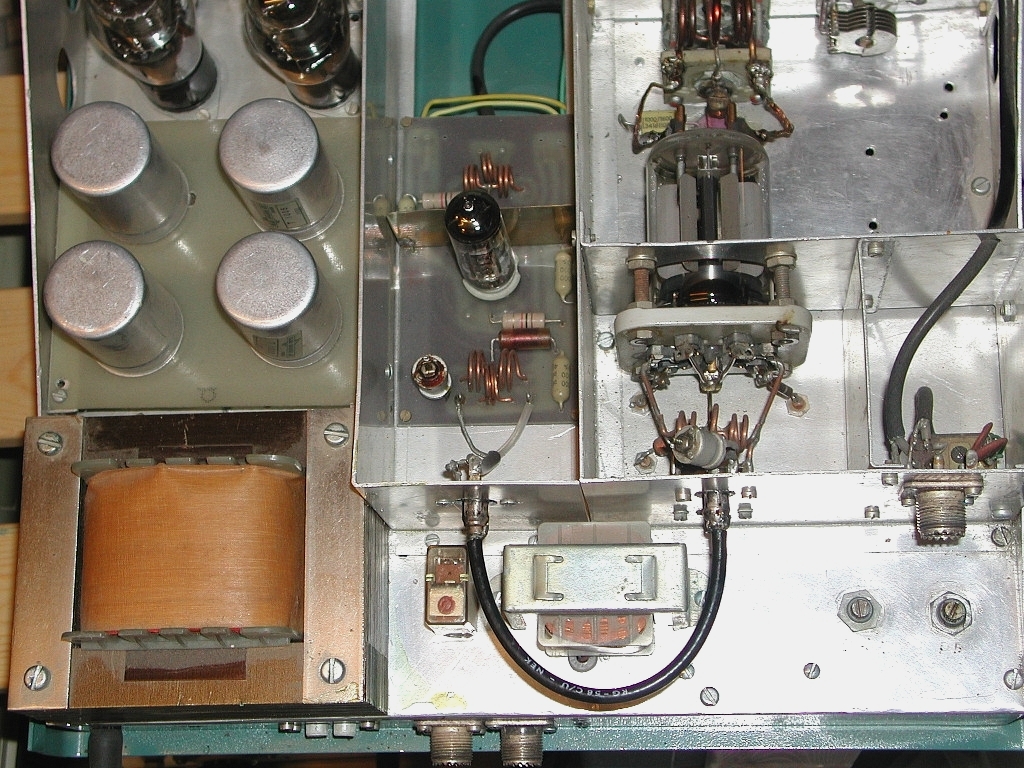

Top view

Transverter

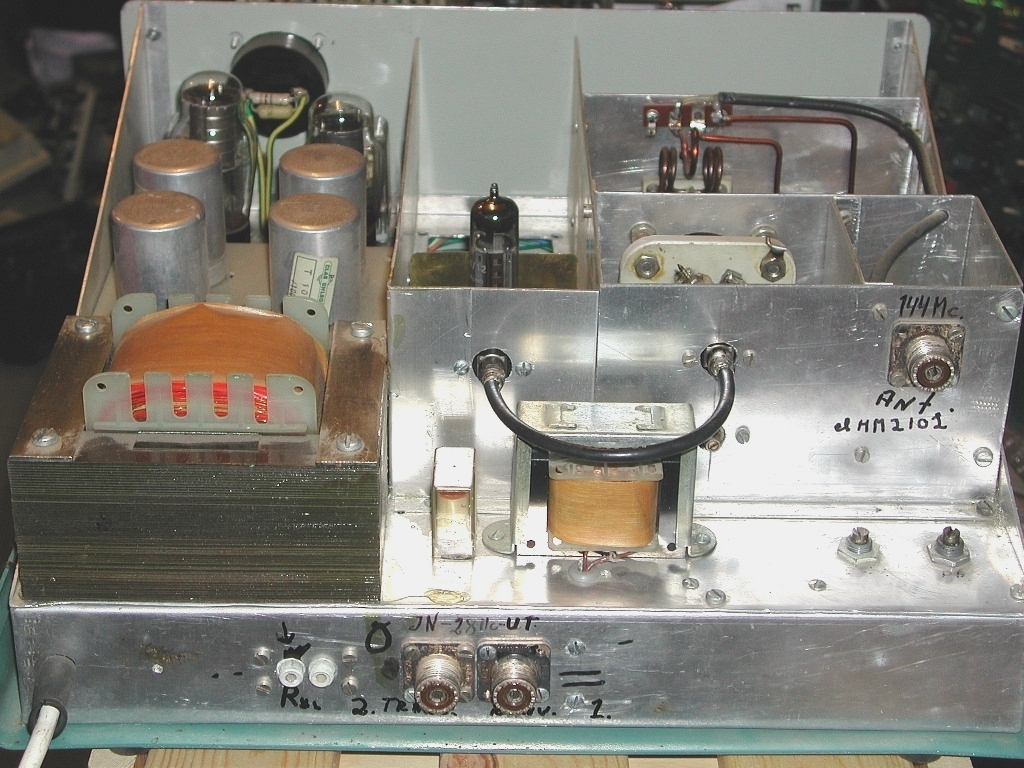

Rear view

Transverter

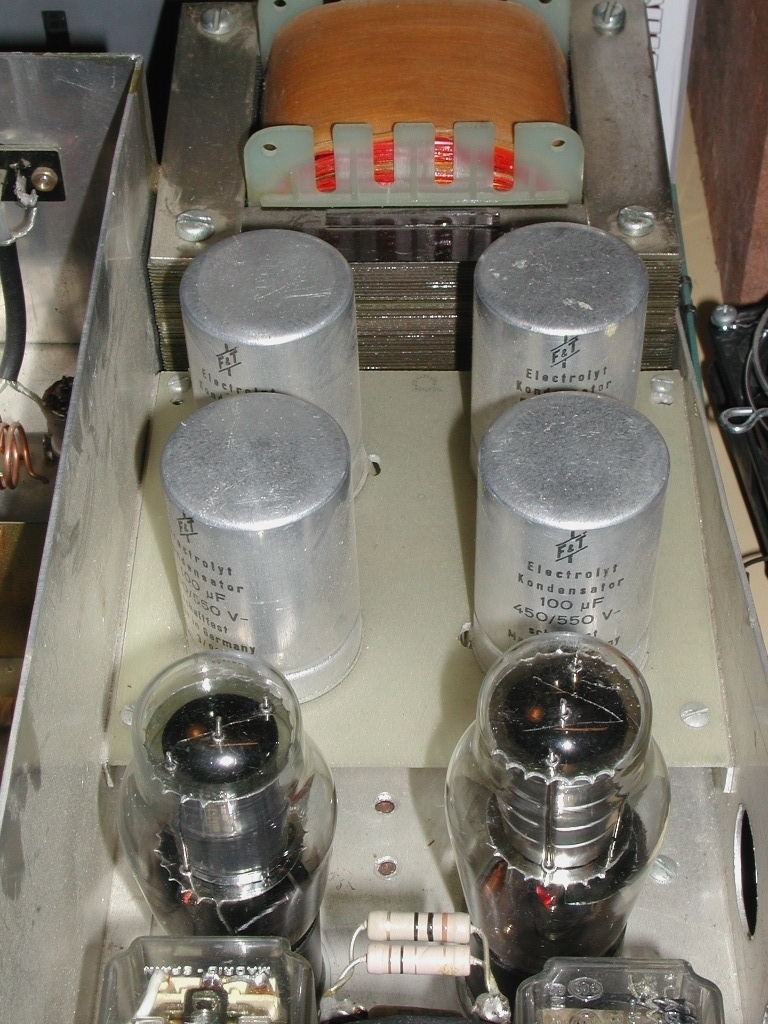

VR 105 and VR 150

Transverter

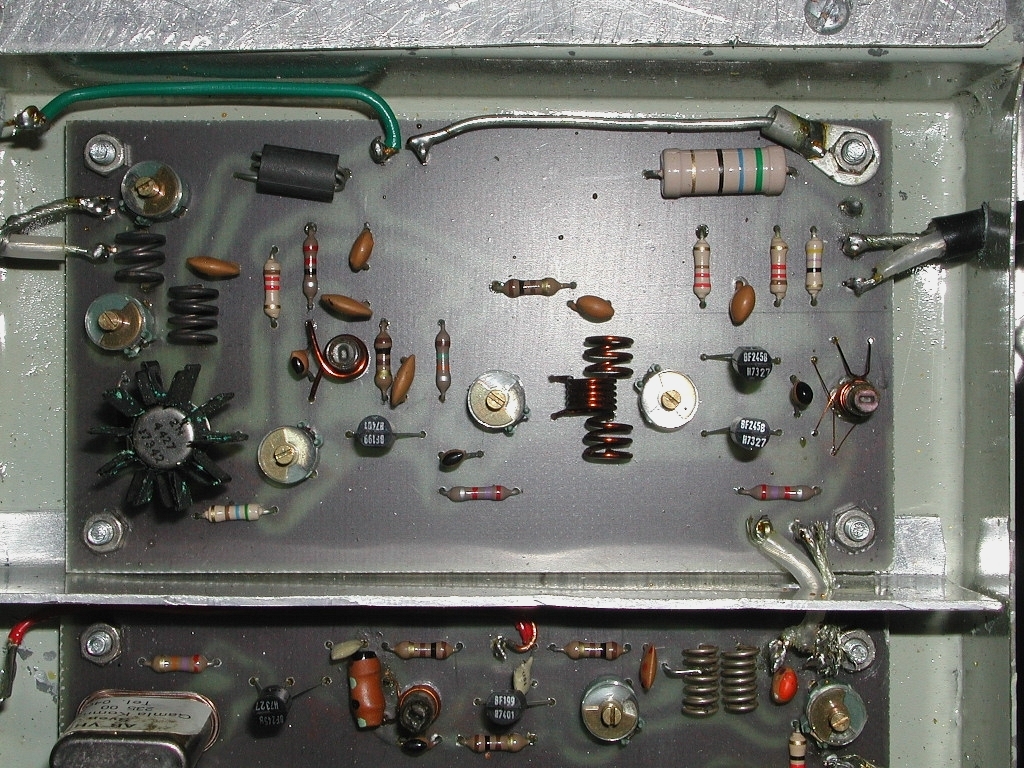

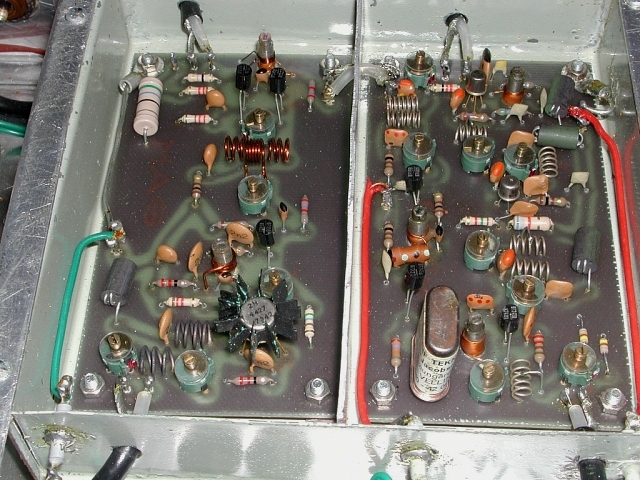

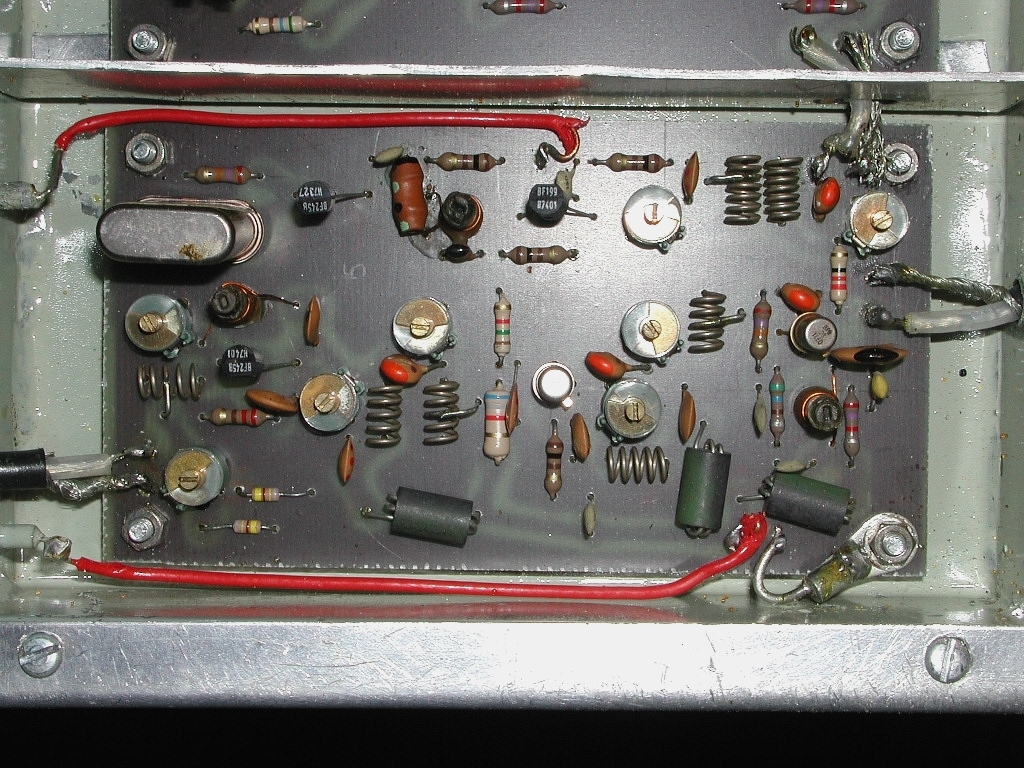

The low power transverter circuitry

Transverter
The low power transverter circuitry

Transverter
The low power transverter circuitry

Transverter

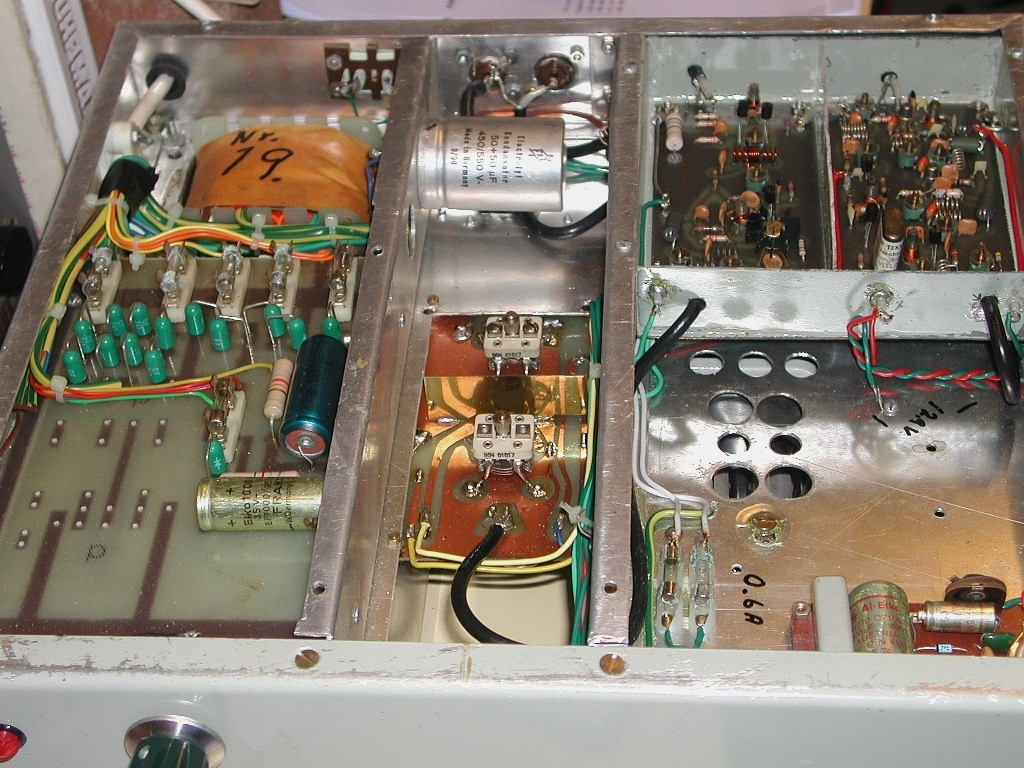

Bottom view
