SB-101


The SB-101 80...10 meter Ham Band Transceiver came on the market in 1967 and was produced until 1970. It replaced the SB-100, that came on the market in 1965. The SB-101 was then replaced by the SB-102, that was produced until 1975. The SB-100/SB-101/SB-102 series resembled some of the Collins products at the time, so quite often they were called "the poor mans Collins". The SB-101 was a slightly improved SB-100. The SB-102 was an improved SB-101. The major difference is that the SB-102 has a solid state VFO or LMO (Linear Master Oscillator), as Heathkit called it, but the SB-100 and the SB-101 has a valve VFO (LMO).


SB-101

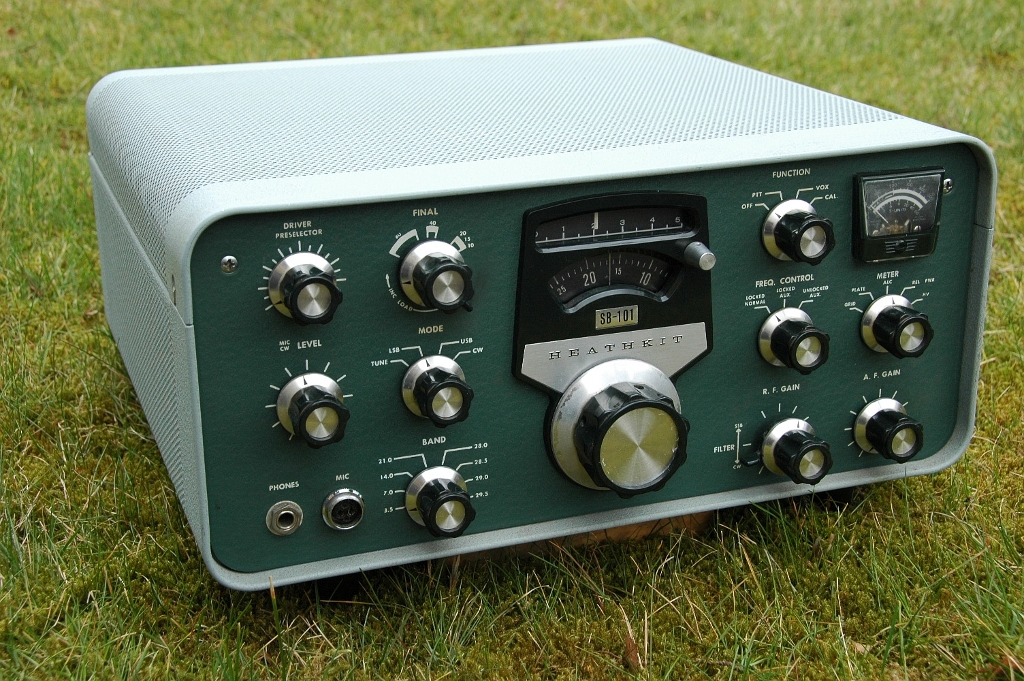

   My SB-101 in excellent condition

SB-101


SB-101

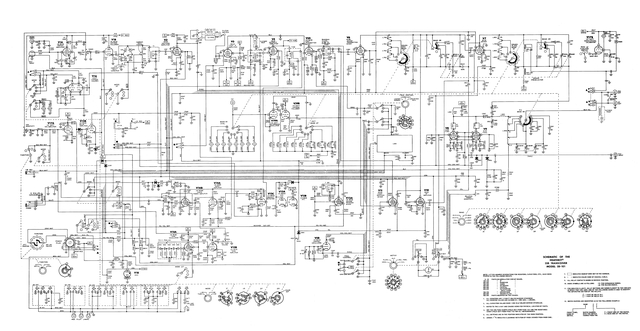

   The SB-101 schematic
